Prysmian Aluminium Hook Cleat 371AA Series

BICON-Prysmian-Aluminium-Hook-Cable-Cleat-371AA-SeriesHook Cleat (Aluminium)
371 Series


• Suitable for use with cable diameters 19 to 76mm.
• Manufactured from aluminium alloy.
• Self-adjusting ranges.
• Two-piece, single fixing design.
• Can be double stacked on a single fixing.
• Can be installed in temporary open position to aid single person working.
• Suitable for indoor dry normal industrial use or outdoor unpolluted areas.
• Operating temperature -60°C to +105°C.
• Not designed to secure cables in long vertical routes.
• LUL APR Product ID 1962.



LUL Approved, London Underground Approved



BICON-Prysmian-Aluminium-Hook-Cleat-371AA-SeriesPrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
Prysmian 371AA03 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA04 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA05 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA06 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA07 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA08 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA09 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA10 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA11 Aluminium Hook Cleat (Aluminium Cable Cleats)

Prysmian 371AA12 Aluminium Hook Cleat (Aluminium Cable Cleats)


Method of Fixing
In all applications the cleat should be mounted on suitable M10 fixings.
When mounting directly on “Unistrut” or “Leprack” type channel, adaptor plate 380AG02 should be used see here

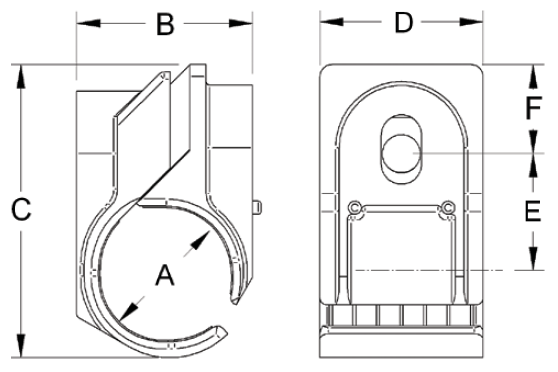

BICON-Prysmian-Aluminium-Hook-Cable-Cleat-371-AA-Series
Performance data
Test Standard EN 50368:2003
Type 6.1.1 Metallic
Impact Resistance 6.2.5 V. Heavy
Lateral Load 1.32 -> 1.5 kN
Axial Load 82 -> 109 N
Needle Flame >120 secs

*Technical data subject to change without notice
