Prysmian Firefix Single Clip | Prysmian FP Fire Performance

BICON-Prysmian-Firefix-Single-ClipFirefix®
Single Clip


• LUL APR Product ID 1960.
• Nail fixed fire resistant clip.
• The Firefix™ system is fast easy and meets the cable support requirements of British standards: BS5839-1: 2002, BS5266-1:2011 and BS5839-8: 2006.
• Designed to be used with the Spit Pulsa™ gas nailing technology for rapid installation.
• Made from corrosion resistant Stainless Steel which is coated with an intumescent LSOH coating in either white or red to match the cable.
• Should be installed in accordance with BS7671 / IEE wiring regulations, or other appropriate code.
• Can be fixed to steel, block work, composite steel decking, brick or concrete.
• The fixing of the clip and installation of the cable takes just 10 seconds.



LUL Approved, London Underground Approved



BICON-Prysmian-Firefix-Single-ClipPrysmian Group and BICON*Technical data subject to change without notice








Kit Selection
Kit contents: Clip, ITW Nails and gas cartridge, pin guide adaptors
Clip Selection
Prysmian FPNF01R Red Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPNF01W White Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPNF01R15 Red Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPNF01W15 White Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPNF03R Red Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPNF03W White Firefix Clip (Single) | Prysmian FP Fire Performance Clips


ZF Kits contain clips only

Clip Selection
Prysmian FPZF01R Red Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPZF01W White Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPZF03R Red Firefix Clip (Single) | Prysmian FP Fire Performance Clips

Prysmian FPZF03W White Firefix Clip (Single) | Prysmian FP Fire Performance Clips


Installation

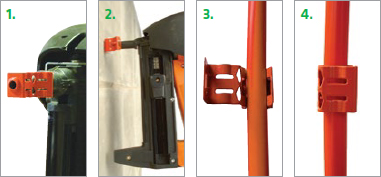

BICON-Prysmian-Firefix-Single-Clip-Installation
1. Position the FIREFIX™ clip directly on to the nail guide (No adaptors required).
2. Ensure the substrate is clear before pushing the Spit Pulsa™ tool against the substrate, and nailing the clip into position.
3. Place the cable into the clip.
4. Close clip.








*Technical data subject to change without notice
